Low-voltage PIR motion sensor switch, 3.7–24 V

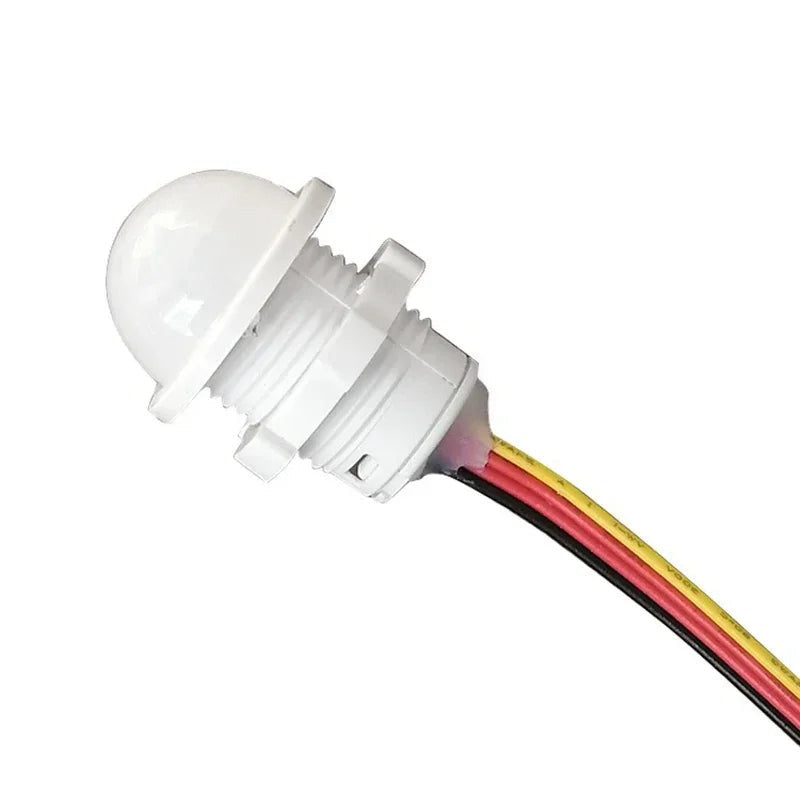

Low-voltage PIR motion sensor switch, 3.7–24 V – view 2

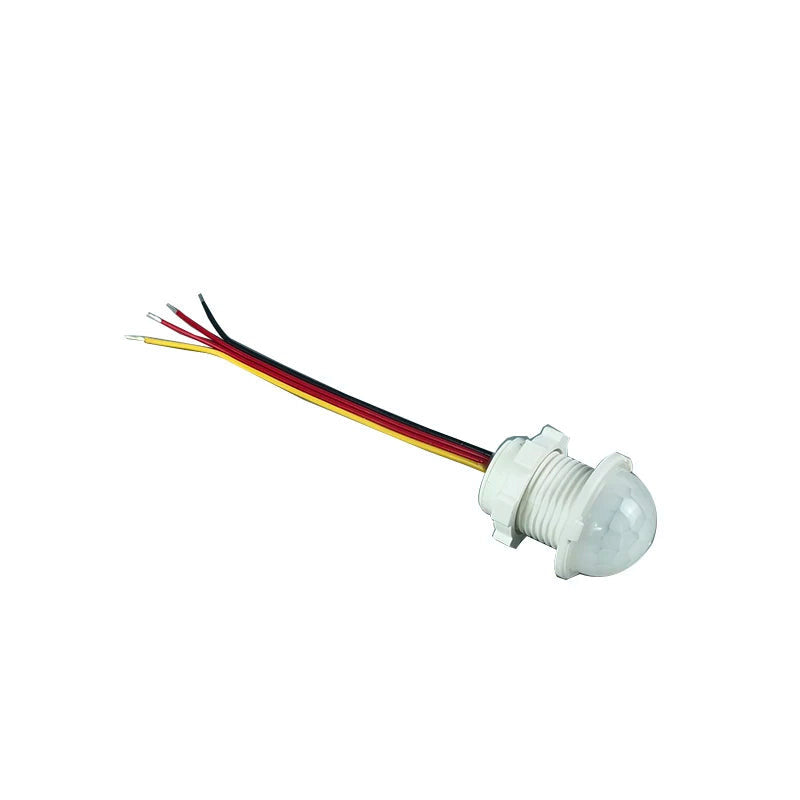

Low-voltage PIR motion sensor switch, 3.7–24 V – view 3

13

FCC / CE
Sensors & Hubs

Low-voltage PIR motion sensor switch, 3.7–24 V

$11.99

In stock FCC / CE certified

Mode Night only
Pack Single
  • 2-year warranty
  • 30-day returns
  • Free shipping on orders $80+

The details

A tiny in-line motion switch for LED strips and cabinet lights: wire it between the power supply and the light and it switches on when someone walks by. Choose the night-only version to keep it dark in daylight.

What's in the box

  • PIR sensor switch (1 or 5, as selected)

Specs

  • Input: DC 3.7–24 V constant voltage; output equals input
  • Load: up to 3 A (about 8 W at 3.7 V, 10 W at 5 V, 25 W at 12 V, 36 W at 24 V)
  • Detection: 120° angle, up to about 5 m; 30 s hold time
  • Modes: night-only (light sensor) or all-day sensing
  • Mounting: 19–20 mm hole; 12 cm leads
  • Certification: CE
